Q9 Display Remote Mount Kit

Q9 Display Remote Mount Kit

SKU 113275-10
Availability:
Manufactured Item - Typical Lead Time 5 days
$515.90 - $515.90
$515.90
$515.90 - $515.90
$515.90

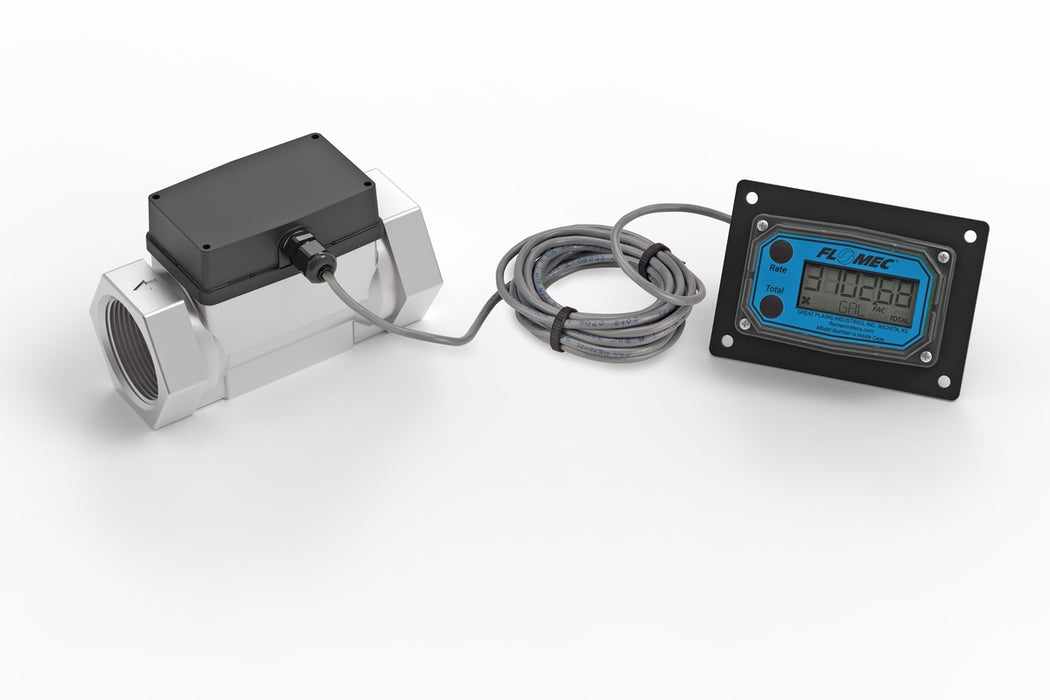

The Q9 Display Remote Kit Assembly modifies FLOMEC® electronic digital meters for applications in installations requiring remote indication and high or low fluid temperature metering applications. This kit provides the versatility of panel mounting the LCD readout up to 30 meters away from the flow meter. This kit consists of a sensor module, a dust cover assembly, and 3 meters of cable. It requires a complete meter with a Q9 display.

Add this kit to a G2, TM or A1 to remotely mount the display on a separate location such as a panel or wall.

Features
  • Accommodates fluid temperatures from -40°F to +250°F (-40°C to +121°C) depending on meter
  • This kit can upgrade an existing FLOMEC meter (with Q9 display) or can be purchased with a new meter
  • Battery-powered display, no additional power required
  • Use with the A1, G2, TM, and 03 Series meters
Specifications
  • Magnetic Pickup: 1.3k Ohm, 90mH
  • Signal Type: Sine Wave
  • Voltage: Peak to Peak, 10 mV to 500 mV
  • Frequency: 11 to 608 Hz
  • Cable: 10 ft. (3 m), 2-conductor shielded, Belden #9501
