OM008S513-212

OM Series Flowmeter - OM008S513-212

Availability:
Manufactured Item - Typical Lead Time 5 days
SKU OM008S513-212
$1,282.60 - $1,282.60
$1,282.60
$1,282.60 - $1,282.60
$1,282.60

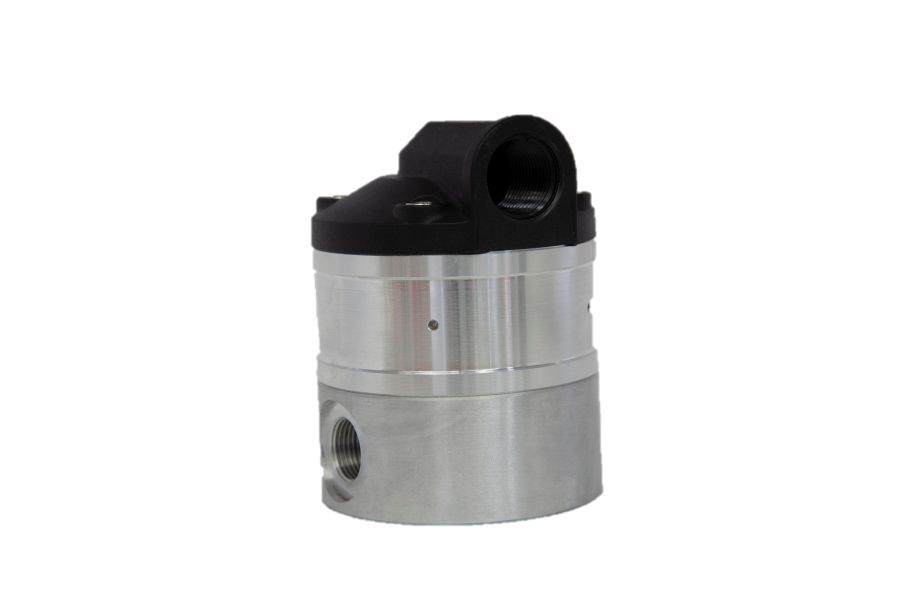

OM Series Flowmeter - OM008S513-212

FLOMEC® OM Series Meters are an extremely versatile flowmeter which accurately measures high and low viscosity fluids. With no flow conditioning required and a small footprint, the OM008S513-212 flowmeter allows for compact installation. An accuracy of 1% and 0.03% repeatability regardless of viscosity changes make the OM Series a versatile meter. With a simple and reliable design concept using only two moving parts, they provide long service life and minimised maintenance costs.
Product comes calibrated with standard calibration certificate.

Specifications

  • Series: OM Oval Gear
  • Model: 3/8"
  • Body Material: 316L Stainless Steel Body
  • Rotor Material: Stainless steel Rotors with Carbon Ceramic Bearings
  • O-Ring Material: Teflon encapsulated viton O-Rings
  • Temperature Limits: 120°C
  • Process Connections: BSPP (G) female threaded
  • Cable Entries: 1/2" NPT
  • Integral Options: Pulse Out
    •
