OM Series Flowmeter - OM008A511-811R5

Availability:
Manufactured Item - Typical Lead Time 5 days
SKU OM008A511-811R5
Original price $1,932.70 - Original price $1,932.70
Original price
$1,932.70
$1,932.70 - $1,932.70
Current price $1,932.70

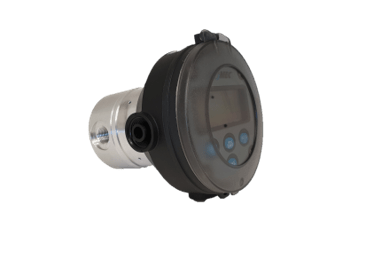

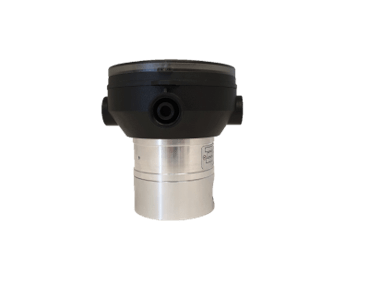

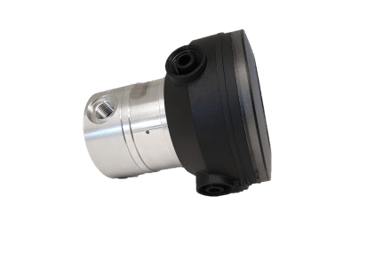

OM Series Flowmeter - OM008A511-811R5

FLOMEC® OM Series Meters are an extremely versatile flowmeter which accurately measures high and low viscosity fluids. With no flow conditioning required and a small footprint, the OM008A511-811R5 flowmeter allows for compact installation. An accuracy of 1% and 0.03% repeatability regardless of viscosity changes make the OM Series a versatile meter. With a simple and reliable design concept using only two moving parts, they provide long service life and minimised maintenance costs. The OM008A511-811R5 flowmeter comes fitted with a FLOMEC® RT14 Rate Totaliser. The perfect display for users who require a more sophisticated local display which can also interface with external control or monitoring equipment. The RT14 features a backlit LCD, which provides optimal readability from a distance or in low-light conditions. Various output options are available to suit almost any flow measurement application, with a 4-20mA analogue signal for flowrate feedback and control, flow alarms for monitoring of critical processes, and a scaled pulse signal for remote monitoring of total volumes.
Product comes calibrated with standard calibration certificate.

Specifications

  • Series: OM Oval Gear
  • Model: 3/8"
  • Body Material: Aluminium Body
  • Rotor Material: Stainless steel Rotors with Carbon Ceramic Bearings
  • O-Ring Material: Viton O-Ring
  • Temperature Limits: 80°C
  • Process Connections: BSPP (G) female threaded
  • Cable Entries: M20 x 1.5mm
  • Integral Options: RT14 rate totaliser with GRN housing
