OM Series Flowmeter - OM008A003-821R4

Availability:
Manufactured Item - Typical Lead Time 5 days
SKU OM008A003-821R4
Original price $1,570.80 - Original price $1,570.80
Original price
$1,570.80
$1,570.80 - $1,570.80
Current price $1,570.80

OM Series Flowmeter - OM008A003-821R4

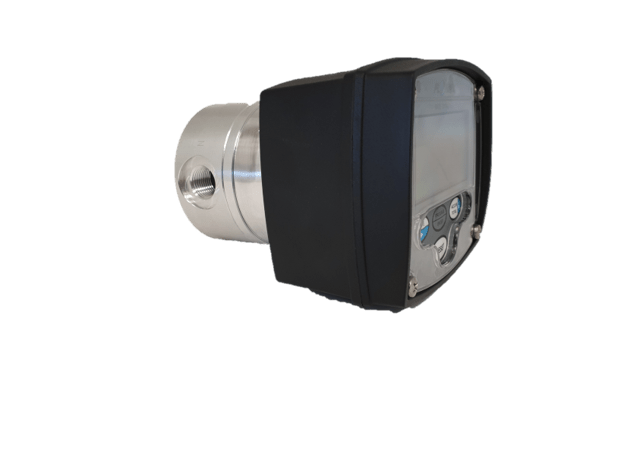

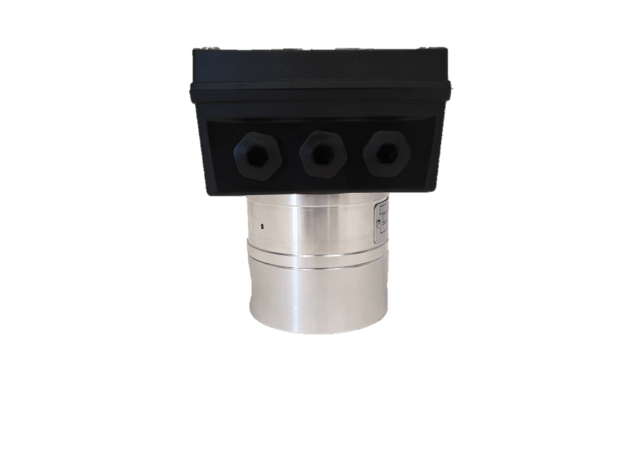

FLOMEC® OM Series Meters are an extremely versatile flowmeter which accurately measures high and low viscosity fluids. With no flow conditioning required and a small footprint, the OM008A003-821R4 flowmeter allows for compact installation. An accuracy of 1% and 0.03% repeatability regardless of viscosity changes make the OM Series a versatile meter. With a simple and reliable design concept using only two moving parts, they provide long service life and minimised maintenance costs. The OM008A003-821R4 flowmeter comes fitted with a FLOMEC® RT40 Rate Totaliser. The perfect display for users who require a simple local display with no output signals. The RT40 features a large dual-line backlit LCD, which provides optimal readability from a distance or in low-light conditions.
Product comes calibrated with standard calibration certificate.

Specifications

  • Series: OM Oval Gear
  • Model: 3/8"
  • Body Material: Aluminium Body
  • Rotor Material: PPS - Teflon filled Rotors
  • O-Ring Material: Teflon encapsulated viton O-Rings
  • Temperature Limits: 80°C
  • Process Connections: NPT female threaded
  • Cable Entries: M20 x 1.5mm
  • Integral Options: RT40 rate totaliser with Aluminium housing
