OM Series Flowmeter - OM006A513-811R4

OM Series Flowmeter - OM006A513-811R4

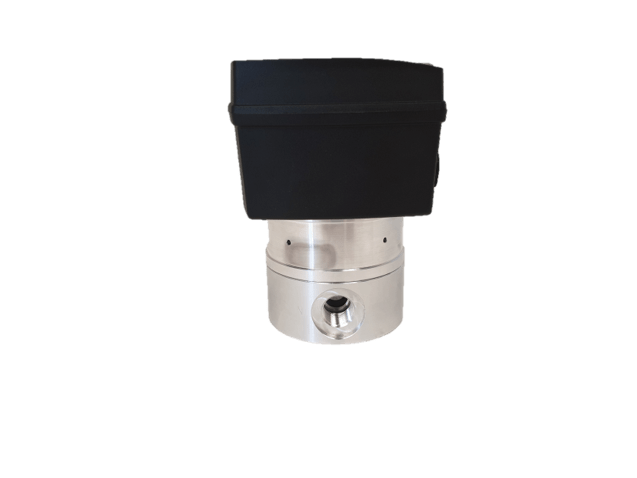

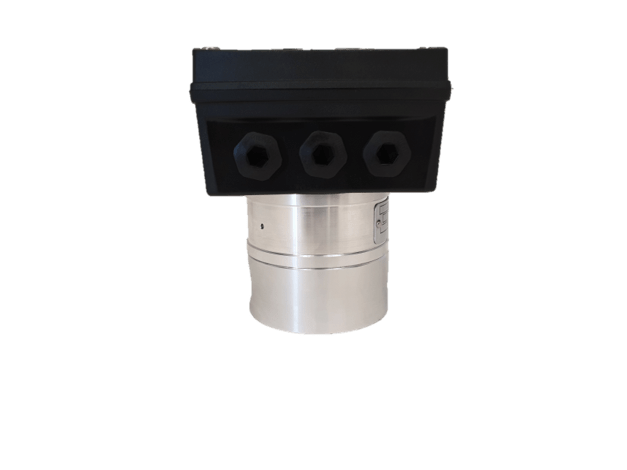

FLOMEC® OM Series Meters are an extremely versatile flowmeter which accurately measures high and low viscosity fluids. With no flow conditioning required and a small footprint, the OM006A513-811R4 flowmeter allows for compact installation. An accuracy of 1% and 0.03% repeatability regardless of viscosity changes make the OM Series a versatile meter. With a simple and reliable design concept using only two moving parts, they provide long service life and minimised maintenance costs. The OM006A513-811R4 flowmeter comes fitted with a FLOMEC® RT40 Rate Totaliser. The perfect display for users who require a simple local display with no output signals. The RT40 features a large dual-line backlit LCD, which provides optimal readability from a distance or in low-light conditions.
Product comes calibrated with standard calibration certificate.

Specifications

Series: OM Oval Gear

Model: 1/4"

Body Material: Aluminium Body

Rotor Material: Stainless steel Rotors with Carbon Ceramic Bearings

O-Ring Material: Teflon encapsulated viton O-Rings

Temperature Limits: 80°C

Process Connections: BSPP (G) female threaded

Cable Entries: M20 x 1.5mm

Integral Options: RT40 rate totaliser with Aluminium housing
