01A Series Diesel Flow Meter

GPI®SKU: 113255-103

Connection: 1 inch BSPT
Price:
Sale price$294.80

Tax included

Stock:
In stock

Description

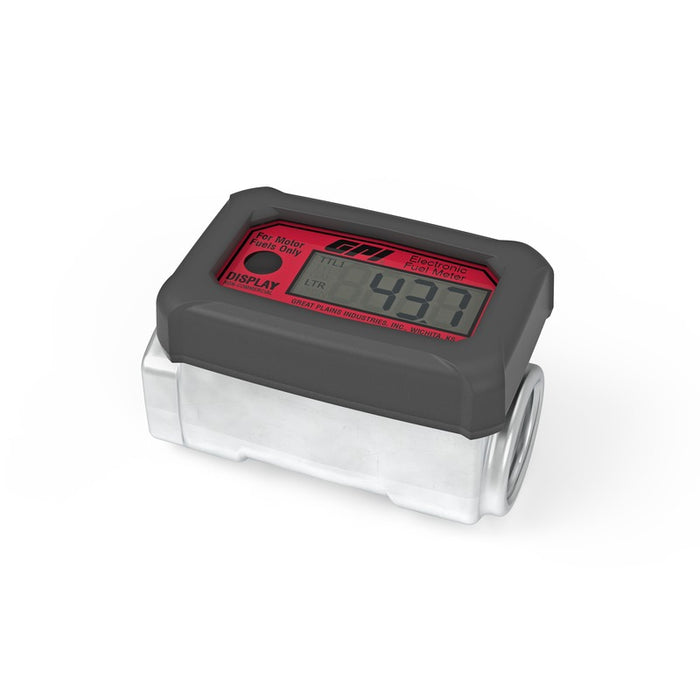

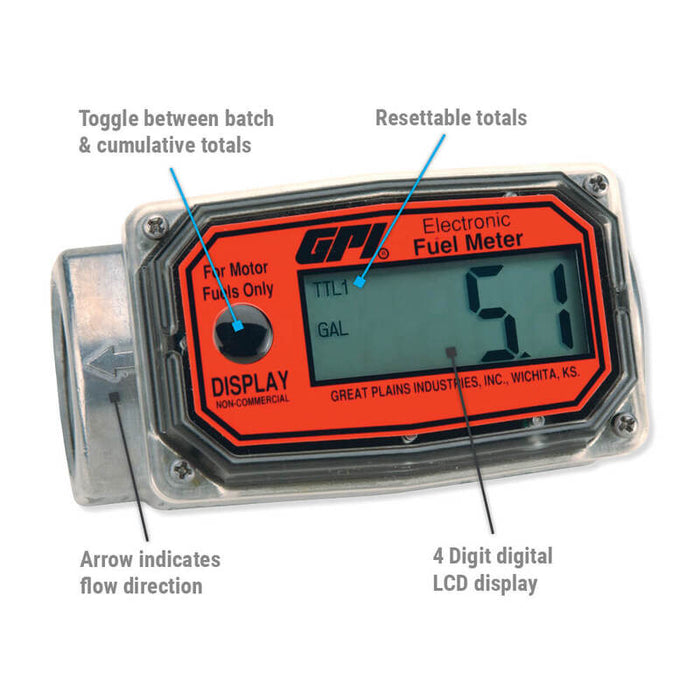

01A Series Diesel Flow Meter

The 01A Series Diesel Flow Meter is a lightweight, accurate, and reliable turbine meter with rugged aluminum housing, sealed electronic circuitry and digital display.

Accurate (within 5%) and repeatable (± 0.5%), the 01A Series Digital Diesel Meter works perfectly with diesel and kerosene which makes this digital diesel meter a versatile and economical solution.

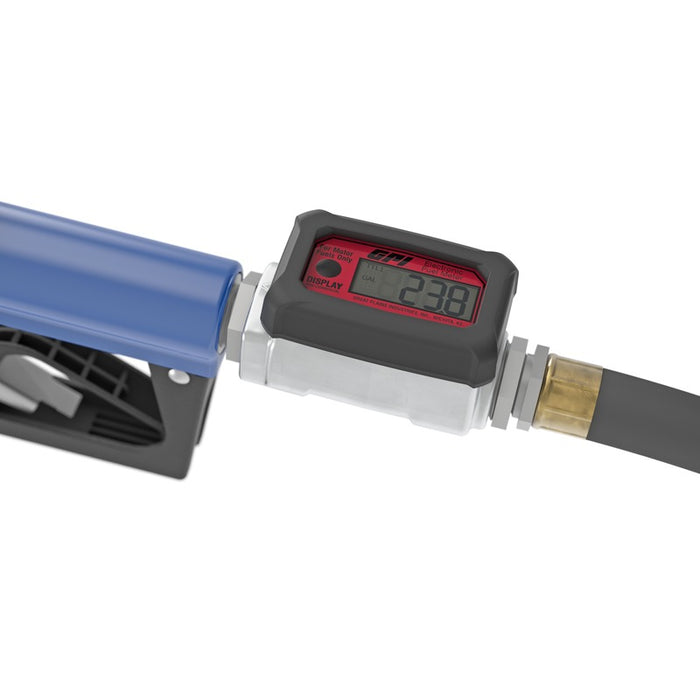

Designed with industry in mind, the 01A series is perfect for inline use in gravity fed systems and with a wide range of fuel transfer pumps and comes factory calibrated ready for plug and play. This allows for simple installation for users in a wide variety of installation envronments and requirements.

Specifications

  • For use with diesel only on gravity feed or electric transfer pumps
  • Turbine type meter
  • Flow range: 10 L/min to 100 L/min
  • Available in 1 inch BSPT(f) or NPT inlet/outlet
  • Maximum working pressure of 300psi (21bar)
  • Maximum batch and cumulative total: 9,999L
  • Accurate to ±5%
  • Repeatability: ±0.5%
  • Power: Two alkaline AAA batteries (Average 5 year use)
  • Operating temperature range of between -10ºC to +50ºC
  • Housing: Aluminium
  • Factory calibrated (not field calibratable)

 Applications

  • Fuel Transfer
  • Agricultural Equipment Refueling
  • Depot Refueling


Downloads

01A Series Data Sheet
01A Series Instruction Manual
